Products

Capture, archive, stream, publish, manage.

Deployable command systems and modular end-to-end video capture, from one ruggedized case to a rack of Digital Media Recorders. Everything here is designed and manufactured in the USA, and every brochure, manual and spec sheet we publish is a direct download from its entry below.

Tactical communications

Same case. Same core. Different viewing options.

Deployable command systems for where the network isn't. Four steps to stand one up: power cable, four latches, lid, power switch — one person, no tools.

Panels: 3 × 17.3″
On screen: Three side by side
Panel video: 1080p60, optically bonded
External out: 3 × HDMI 4Kp30
Camera: 4K-UHD, 120° FOV
Bandwidth: Up to 6 Mbps P2P
Own network: 1000+ ft
Weight: 65 lbs configured
Power: 100–240VAC 50/60Hz

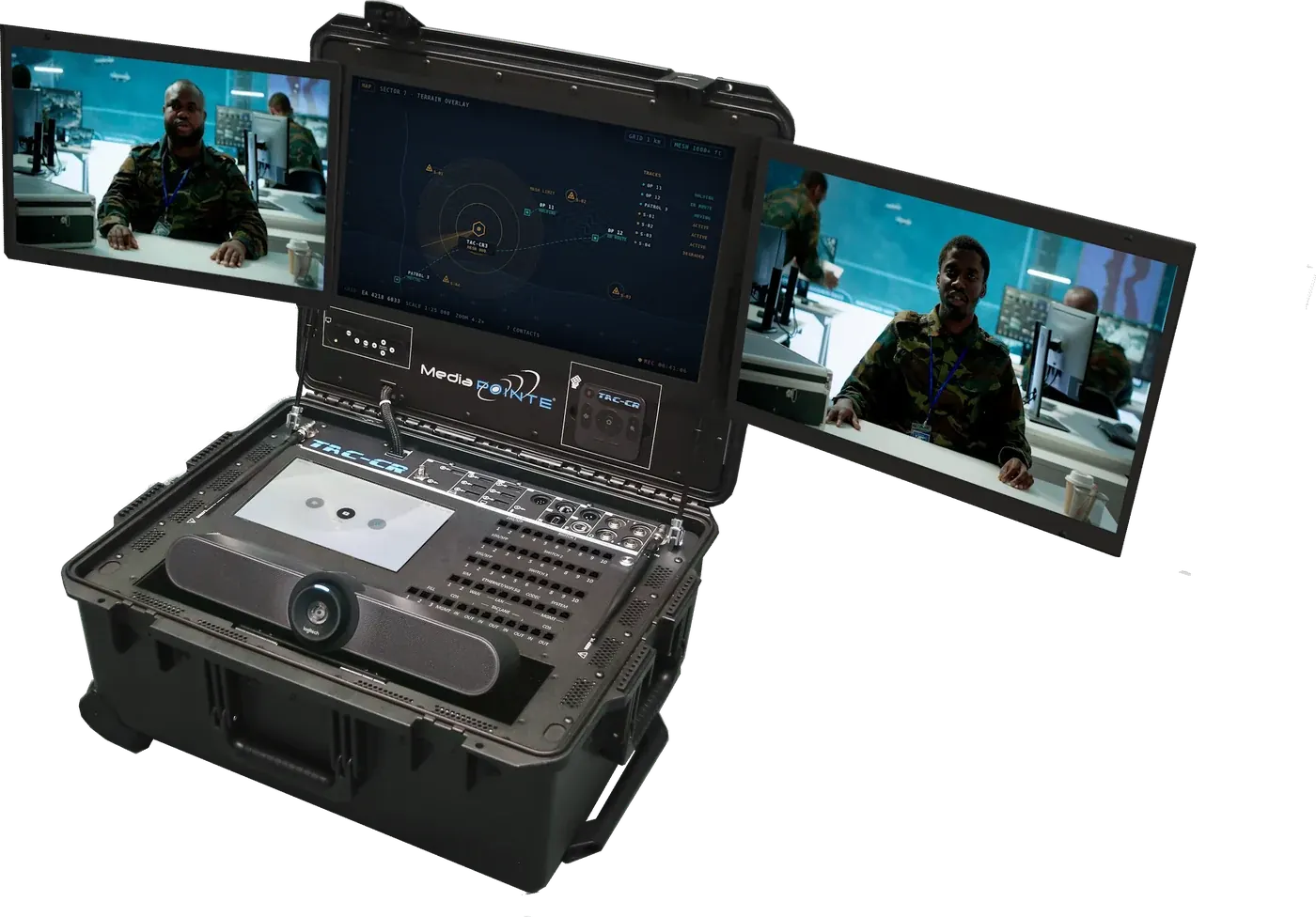

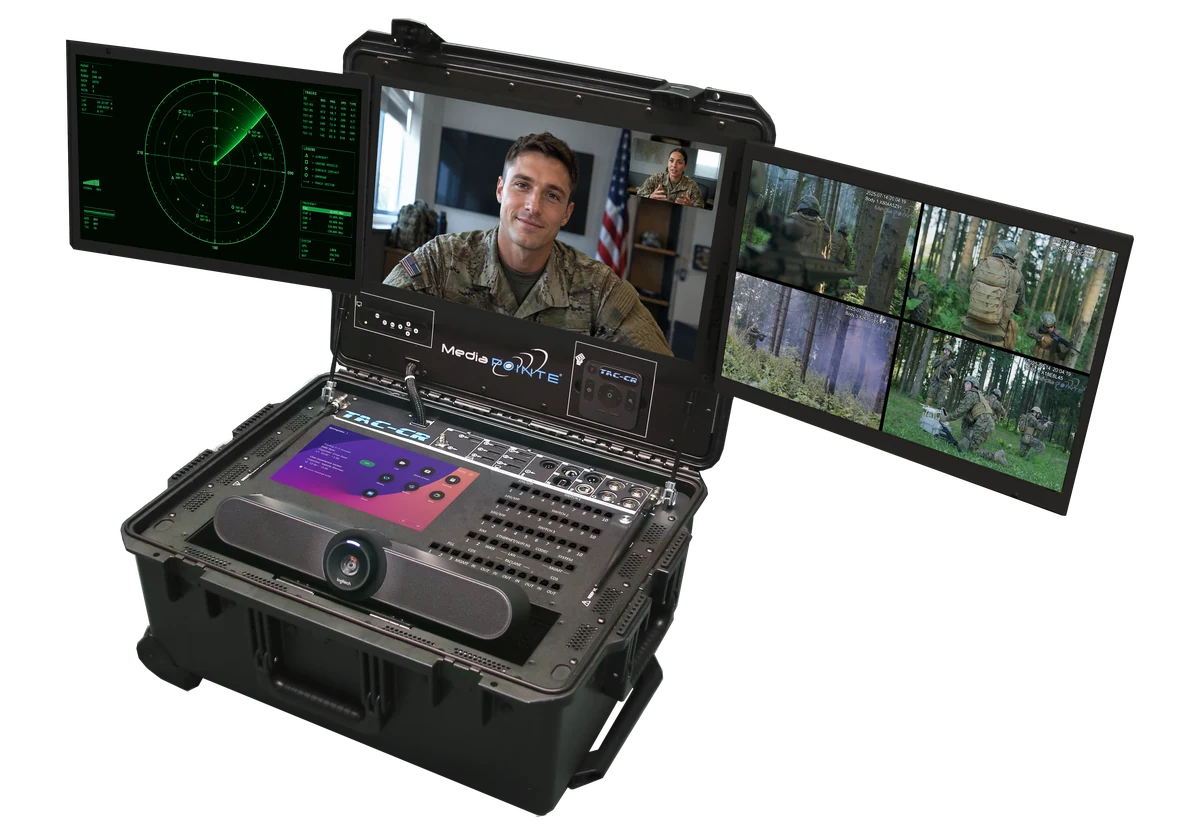

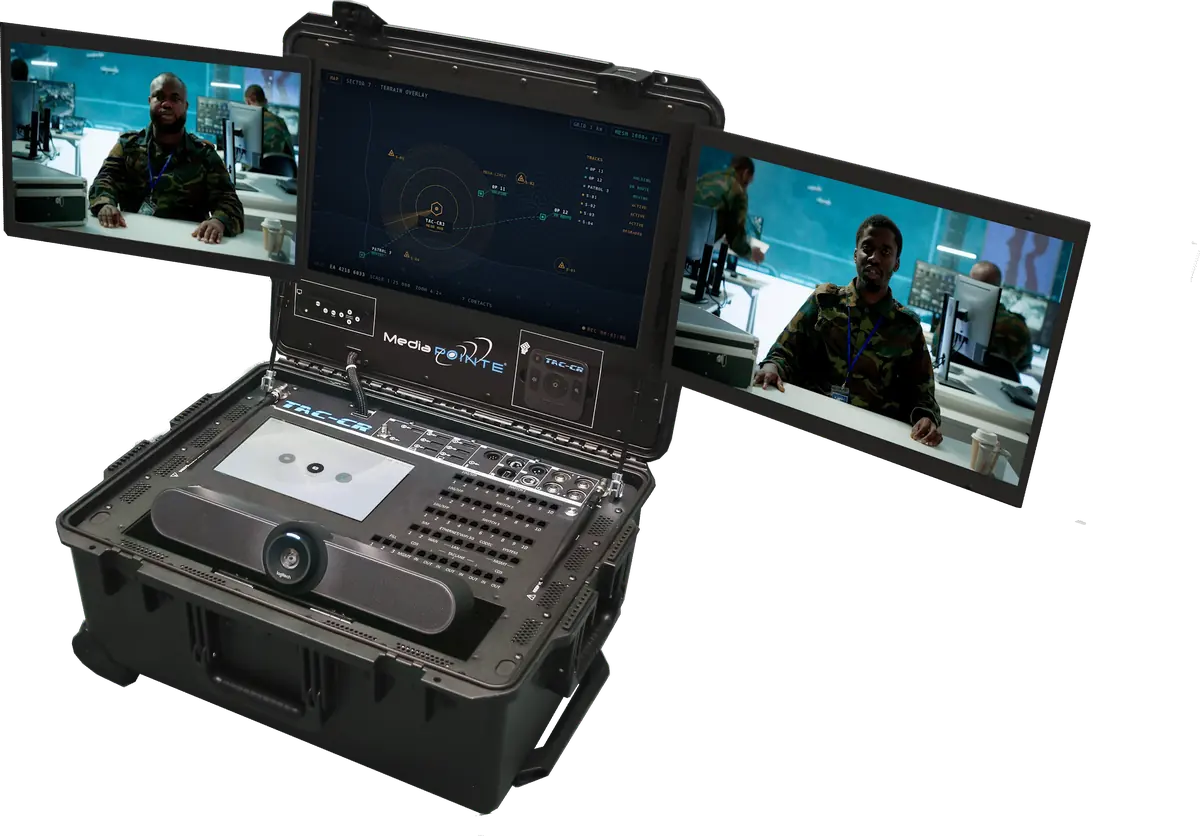

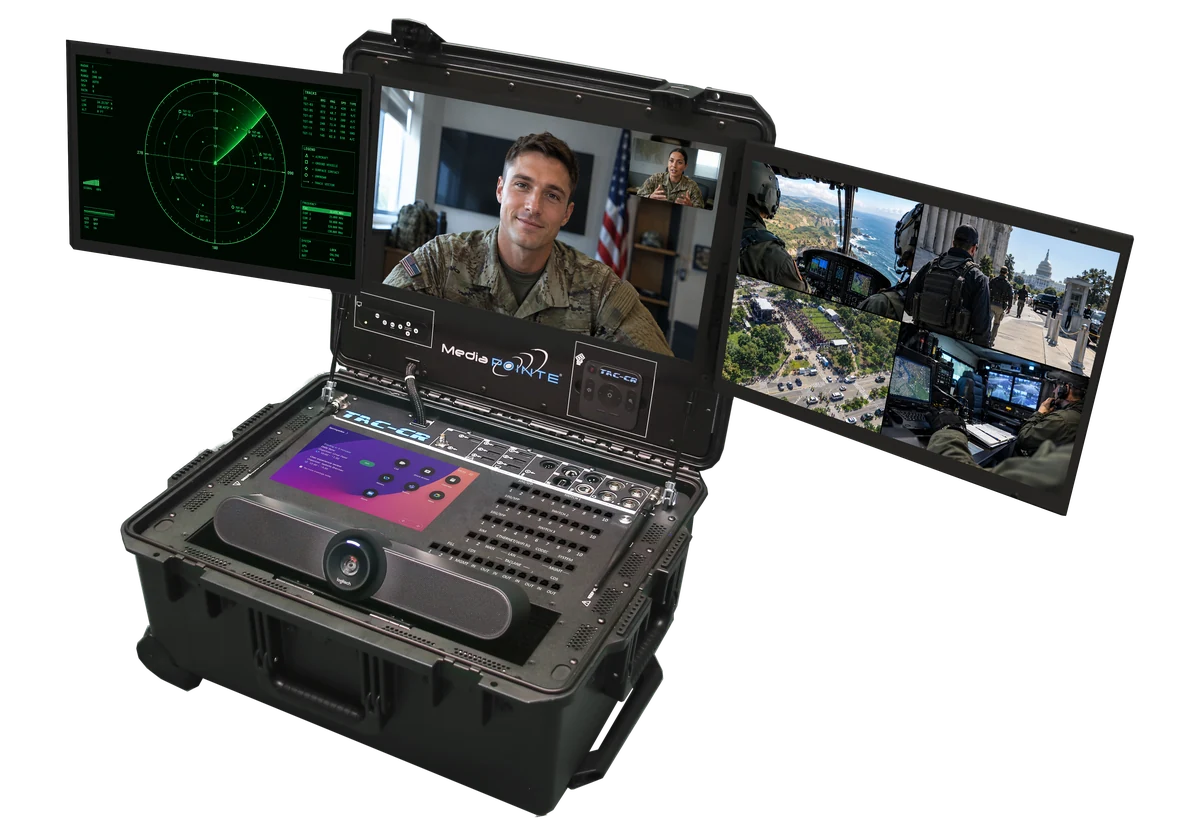

TAC-CR3

Flagship Three panels

Three panels. Brief a room.

Secure video, sensor feeds, applications and a self-contained network in one ruggedized case. The common operating picture, live sensor video and the remote call each get their own panel, side by side, so nobody is switching sources mid-brief.

In the field

Deploys in four steps — power cable, four latches, lid, power switch
Brings its own network over SATCOM, wired Ethernet, Wi-Fi and mesh, or 5G/4G LTE
Automatic failover between transports — the session holds, no re-dial
RF mute silences every transmitter while the system stays powered

On the network

Up to three 10-port switches with PoE, 802.1X, MACsec-128 and VLANs
Isolated switching carries up to three classifications in one case; TS/SCI Type 1 encryption available
Cross domain solutions — guarded transfer between classification levels, with data filtering and inspection on what crosses
Microsoft Teams, Zoom, Google Meet and Webex

Documentation

Brochure Specifications

Request a briefing Government solutions

Panel: 1 × 21.5″
On screen: One composited view
Panel video: 1080p60, optically bonded
External out: 3 × HDMI 4Kp30
Camera: 4K-UHD, 120° FOV
Bandwidth: Up to 6 Mbps P2P
Own network: 1000+ ft
Weight: 65 lbs configured
Power: 100–240VAC 50/60Hz

TAC-CR

Single panel

One panel. Same everything else.

A single 21.5″ optically bonded panel carrying one composited view, in the same case as the TAC-CR3. Everything else is identical — codec, 4K auto-framing camera, switching, encryption, RF mute, power and case.

In the field

Deploys in four steps — power cable, four latches, lid, power switch
Readable in daylight; no tent required
Wireless hub for field devices, plus local recording
Anchors a pop-up command center — three external screens connect to the case, plus two outboard cameras

Camera & audio

4K-UHD sensor, 120° field of view, automatic framing and speaker tracking
170° pan/tilt with 5× zoom
Beamforming microphone array with AGC, noise reduction and echo cancellation
Headsets for up to four operators; 48V phantom-powered mic input

Documentation

Brochure Specifications

Request a briefing Government solutions

Tactical

TAC HD

The world's first portable WIRELESS all-in-one video recording and streaming system. Listed for Enterprise and Healthcare deployments as well as government programs.

Brochure

Tactical

TAC-C

Member of the TAC tactical line. Listed for Healthcare deployments.

Request datasheet

Compliance

JWICS · JITC

DISA-DoDIN-APL, NDAA and TAA

Encryption

H.235 v3 with AES

Automatic key exchange; TS/SCI Type 1 available

Cross domain

Guarded transfer

Data filtering and inspection on what crosses; specified per deployment

Patents

Mobile network architecture

US 5,960,074 · 6,445,777 · 6,466,655 · EPO 0959299

Case

24.5″H × 19.75″W × 11.75″D

Waterproof, dustproof, EMI/RFI shielded, moisture wicking

Record / Stream / Content

Digital Media Recorders

Modular end-to-end video capture and distribution systems. Rack them, feed them cameras and a graphics source, and they handle everything downstream.

Inputs: 3× DVI (HDMI compat.)
Audio out: 2× RCA
Resolution: 1920×1080 @ 30fps
Storage: 500GB (3TB AESOP opt.)
Network: Gigabit Ethernet
Form factor: 19″ rack, 2U
Dimensions: 17×14×3.5″
Operating temp: 0–40°C

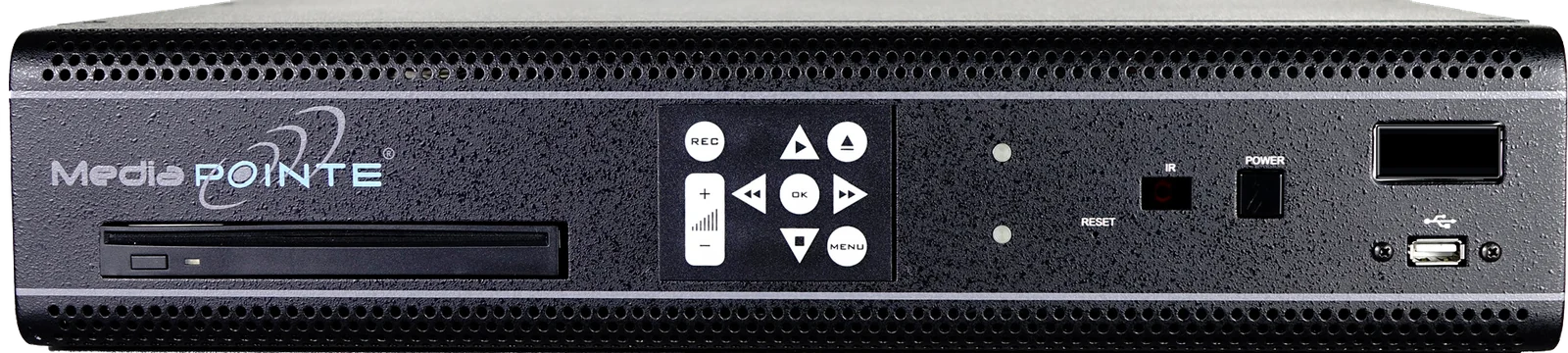

DMR HD3

Three HD sources

One of the easiest to use, cost-effective and reliable capture, recording, streaming and archiving products on the market today.

The HD3 captures, records, streams, and archives audio, video, and graphical data while transmitting simultaneously across networks — enabling live communication for events, meetings, conferences, and seminars in high definition.

Capability

Simultaneous capture of three separate HD sources — two cameras plus one graphics input
Multiple streaming formats: H.264, WMV, MPEG-4 ASP
Variable encoding and frame rates

Operation

Web browser access without client software
Automatic videoconference recording
Mobile device support and multi-user account security

Documentation

Brochure Manual Control codes

Part no.: 40320401
Streaming: H.264, MPEG-4 ASP
Transport: RTSP, unicast, multicast
Resolution: 1920×1080 @ 20fps
Video in: S-Video, DVI/VGA, HD-SDI
Audio in: RCA + balanced mic
Storage: 22–440+ hours
Form factor: 19″ rack, 2U
Power: 92–264VAC, 5A max

DMR HD PRO

Flagship recorder

The DMR HD Pro takes video streaming and archiving to a new level.

The most powerful platform for capturing and streaming lectures, presentations, and meetings today. It combines multiple high resolution sources into a single stream or recording, integrates automated workflow systems, and supports multiple encoding formats for broad content portability.

Capability

Merge multiple HD and standard definition sources into unified streams and recordings
Dual encoding optimizes streaming and HD recording simultaneously
Encodes in multiple industry standard formats with automatic transcoding

Workflow

Integrates with the Keycard Automation System for automated capture and publishing
Optional VOD functionality with DVP set-top players
“Open Mic” audience talkback for real-time Q&A and live discussion
Delivery to mobile devices across platforms

Documentation

Brochure Specifications Control codes

Part no.: 40320401
Resolution: 320×240 – 1920×1080 @30fps
Side by side: up to 1366×768
Video in: up to 3 (Studio)

DMR HD / DMR HD Studio

The DMR HD records audio and video in both standard and high definition (1080p) and can be upgraded to the DMR HD Studio, which combines up to 3 video inputs for a multi-image recording.

The workhorse HD recorder, specified across education, enterprise, and healthcare installations, and the recording engine inside the HD Webcaster.

Capability

Multi-format capture and streaming, customizable
Video-On-Demand functionality available
Up to 3 video inputs on the Studio version

Distribution

CopyME! technology for USB and DVD downloads
Compatible with multiple playback devices

Documentation

Brochure Manual v4.0 Specifications Options Control codes

Graphics in: VGA up to 1600×1200
Video in: Composite NTSC
Outputs: HDMI, DVI, VGA
Wireless: 802.11 b/g/n
Control: HTTP web UI, serial
Dimensions: 1.75×8.5×11″

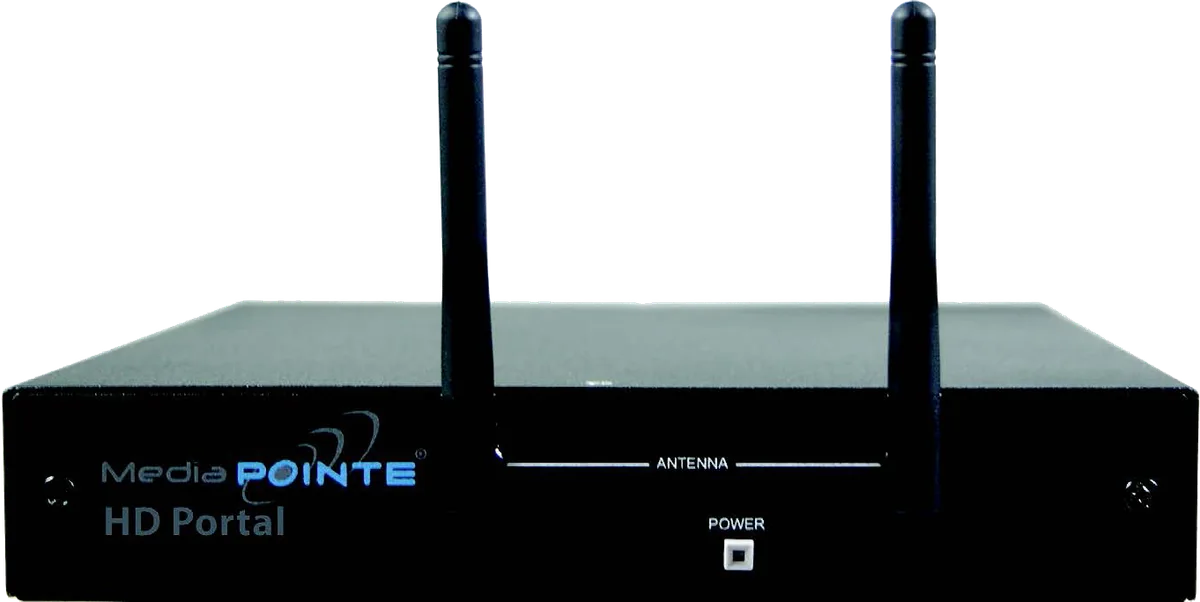

HD Portal

Two-way

The HD Portal provides the greatest combination of power and affordability in a video capturing system today.

A two-way content solution that captures and streams live events while enabling viewing of other network events on demand. It combines multiple sources into multi-image recordings compatible with industry-standard formats, and integrates with DMRs, automation systems, and content management platforms.

Capability

Dual-source capture — camera and VGA input
Live streaming via MPEG-4; multi-format MPEG-4 / H.264 encoding
Network content sharing across all connected HD Portals

Deployment

Optional wireless Wi-Fi Hub technology
Automatic content upload and website publishing
Full integration with the MediaPOINTE ecosystem

Documentation

Brochure Manual v3.1 Control codes

Part no.: HD Portal Plus
Adds: HD source support

HD Portal Plus

Two-way

The HD Portal Plus provides all the power and capabilities of the HD Portal along with support for a variety of high resolution sources including HD cameras.

Specified across education, enterprise, and healthcare installations, and available as a portable kit.

Documentation

Brochure Manual v1.5 Control codes

Part no.: HD Webcaster
Recorder: DMR HD Studio
Camera: HD, adjustable mount
Audio: Wireless lav or handheld
Automation: Keycard (KAS)

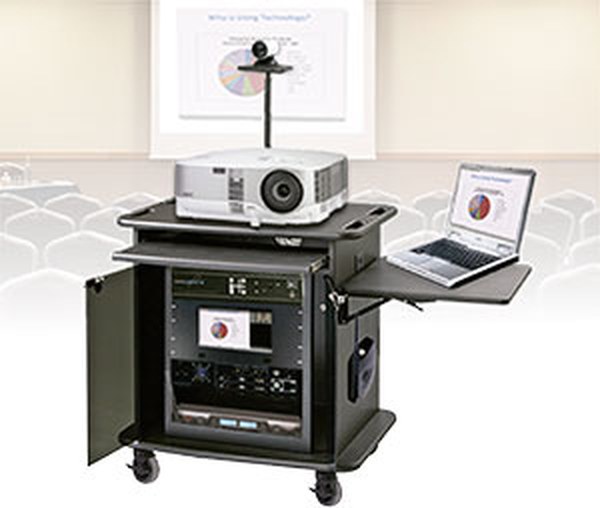

HD Webcaster

Mobile

Now your conferences and meeting events can reach an unlimited audience.

The Mobile HD Webcaster is a self-contained portable system designed to capture live conferences and presentations, combining presenter footage with content such as PowerPoint slides into a professional dual-image format for streaming live or on demand across any network. It broadcasts to PCs and mobile devices wirelessly.

Capability

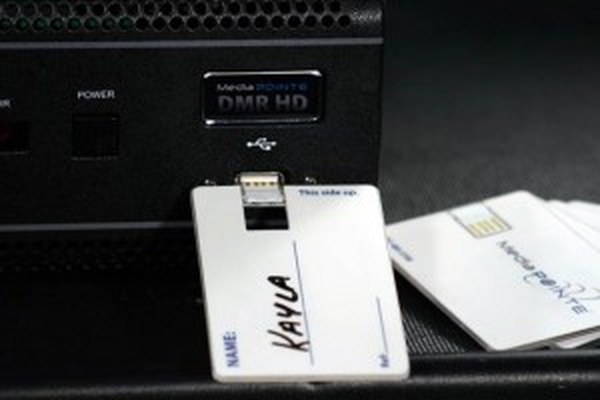

Automated presentation capture using the patented Keycard Automation System
Built-in high definition camera, wireless microphone system, and hookups for any PC, video, or other AV source
Buffered AV outputs for external projection and audio systems

Standard configuration

Multimedia cart with locking wheels — doubles as a projector cart
DMR HD Studio recording system and confidence monitor
AV input/output panel, high-bandwidth network switch, high-power wireless adapter

Documentation

Brochure Control codes

Performer — at a glance

Part no.: Performer
Resolution: 320×240 / 640×480 @30fps
Storage: 11–110 hours
Video in: S-Video / Composite
Audio in: Stereo RCA
Output: DVD+R
Form factor: 19″ rack, 2U
Power: 92–264VAC, 5A max

Performer

Venue Standard definition

MediaPOINTE Performer is designed to capture live performances of anything from Karaoke to the Performing Arts.

It gives owners the opportunity to turn any performance into additional profits and promotional opportunities for their venue, using an automated record-to-burn process that delivers ready-to-play DVDs within minutes.

Production

Optional title and credit slides
Automatic transcoding to DVD+R
Thumbnail image organization

Operation

No file size or duration limits within hard drive constraints
Plays in QuickTime, VLC, and standard DVD players
Artist KeyCard System option for organizing multiple performances

Documentation

Specifications User guide Profits & promotional opportunities Control codes

DMR: 40310401
DMR Studio: 40310402
Video in: S-Video/Composite ×2
Audio in: Line level L/R RCA
Resolution: 320×240 / 640×480 @30fps
Storage: 11–110 hours
Network: Gigabit Ethernet
Form factor: 19″ rack, 2U

DMR / DMR Studio

Standard definition

The DMR records audio and video in standard definition and can be upgraded to the DMR Studio, which combines up to 2 video inputs for a multi-image recording.

The original Digital Media Recorder. Still specified in education, enterprise, and healthcare, and the unit that drives StorePOINTE content across a retail estate.

Streaming

MPEG-4 ASP native streaming with RTSP, unicast, and multicast
Multiple encoding rates and frame rates
Video-on-Demand player functionality

Distribution

CopyME! technology for USB and DVD downloads
Web browser archive access without client software
Portable-device encoding

Documentation

Brochure (2024) Manual v4.0 Specifications Options Control codes

Part no.: DMS
Output: DVD

DMS

Record / Stream

The revolutionary new DMS records, streams and publishes professional DVDs of your events and services…LIVE!

Part of the Record / Stream / Content product family.

Documentation

Brochure Specifications Control codes

Content players

Getting it onto the screen at the other end

Set-top and in-store players that turn any display into an endpoint on your content network.

StorePOINTE — at a glance

Part no.: StorePOINTE
Control: IR, CLI, web UI
Video out: DVI, VGA, HDMI
Resolution: up to 1920×1080 (16:9)
Playback: MPEG-4/H.264, WMV
Storage: 20 hours
Dimensions: 1.75×8.5×11″

StorePOINTE

Retail

Every retailer with multiple stores struggles with the cost and logistics of training in-store staff, delivering corporate messaging, and promoting new product offerings to its captive customers.

A small player box connects to your store displays while a central DMR unit manages content distribution and tracks completion across every location. Marketing content runs during business hours, corporate messaging takes over after close, and staff access training modules, safety seminars, and recruitment videos on demand.

On the floor

Automatic looping of promotional content and advertisements
After-hours corporate messaging
Mobile viewing via iPad or similar devices

Behind it

Automatic daily content updates across the estate
Training completion reporting and analytics
Professional content creation tools via the DMR interface
Optional launch program and monthly content refresh services

Documentation

Brochure & specifications Control codes

DVP — at a glance

Part no.: 10130401
Network: 1× Gigabit Ethernet
Resolution: 1920×1080 @ 20fps
Formats: MP4, NTSC, PAL
Video out: DVI, VGA, S-Video
Audio out: 3.5″ line level
Control: RS232, telnet, API

DVP

Set-top

MediaPOINTE's DVP is used in conjunction with the DMR, DMR HD, and VIDi HD for video over IP transport.

It functions as a Video on Demand player for accessing live events and recorded content while also supporting streamed video playback, turning any display, TV, plasma or LCD into an endpoint on the network.

Playback

Browse and play archives from DMR, DMR HD, and VIDi HD systems
MPEG-4 ASP native streaming with RTSP and unicast
NTSC or PAL video standards

Management

HTTP web portal management
Custom application integration via API; RS232 and telnet control
User account security with secure content folders

Documentation

Brochure & specifications Manual v4.0 Control codes

Portable kits

Everything in one case

For the rooms that aren't wired, the buildings without IT on site, and the events that happen somewhere different every time.

Weight: ~20 lbs
Case: Shockproof, weatherproof
Wireless: Patented Wi-Fi Hub
Setup: Minutes, no IT needed

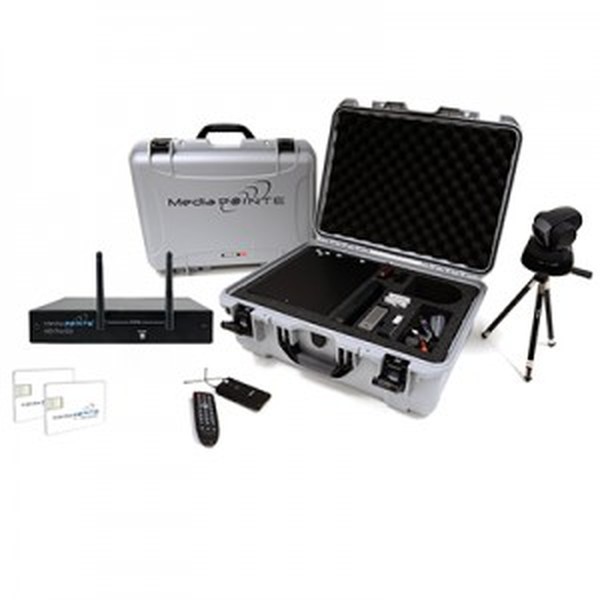

HD Portal Portable Kit

Self-contained

MediaPOINTE's revolutionary HD Portal is already the most powerful, affordable and easy to use eLearning solution on the market today.

A complete portable system for capturing and streaming live events. Patented Wi-Fi Hub technology handles control, monitoring, and content streaming without requiring a network connection or IT support. The entire system fits into a shockproof, weatherproof carrying case weighing roughly 20 lbs.

Why it works

Wireless content control, monitoring, and streaming via patented Wi-Fi Hub technology
Automatic wireless content upload and website publishing
Quick setup in minutes — no IT staff or network connection required

In the case

MediaPOINTE HD Portal unit and KeyCards
Sony EVI D100 VTC camera, Vivitar tripod (extends to 41″), 7″ color monitor
Audiotech wired microphone, Shure FP wireless transmitter/receiver
Extron P/2 DA 2xi amplifier, Cisco 5-port switch, custom multi-unit power supply, interconnect cables

Documentation

Brochure Quick start guide Manual v3.1 Control codes

Portable kit

HD Portal Plus Portable Kit

The HD Portal Plus platform packed as a portable kit, alongside the HD Portal Portable Kit.

Request datasheet

Mobile system

Mobile HD Webcaster cart

The rolling version: cart, camera, wireless mic, confidence monitor, DMR HD Studio, network switch. Doubles as a projector cart between events.

See HD Webcaster

Automation, options & accessories

The systems around the systems

What turns a recorder into a workflow.

A named MediaPOINTE KeyCard being inserted into the USB port of a DMR HD

Patent pending

KAS — Keycard Automation System

Automates content creation, management, and distribution end to end, and complies with government privacy regulations including HIPAA. Integrated across the DMR HD PRO and HD Webcaster.

How it works

Patented

Wi-Fi Hub

Wireless control, monitoring, and streaming without a network connection or IT support. Available on the HD Portal and standard in the portable kits.

In the kits

Storage

AESOP

Optional 3TB storage expansion for the DMR HD3, on top of its 500GB internal drive.

Options PDF

Healthcare

Mentor

Listed for Healthcare deployments.

Request datasheet

Healthcare

RAP

Listed for Healthcare deployments.

Request datasheet

Accessories

Options & accessories

Cameras, microphones, amplifiers, switches, mounts, KeyCards, and interconnect — specified to match your room.

Options PDF

Applies to the whole line

MediaPOINTE products control codes DMR / DMR HD options

Specifying a system?

Every brochure, manual, spec sheet and control-code document above is a direct download. If you need something that isn't listed, tell us which system you're specifying and we'll send the set.

Request documentation Support & services
