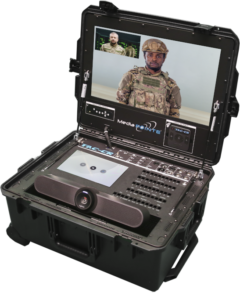

TAC-CR

Part Number: TAC-CR

Request Info

Overview

The TAC-CR is the world’s only complete tactical visual communications solution. Conduct and stream a live multipoint video conference. Automatically record video calls, tactical data, live streams, or video from internal or remote cameras. Auto uploads and deletes recorded communications for remote command operations. Pull remote content live or On-Demand (VOD) – All Wireless, High Definition, Encrypted and Secure.

Description

The TAC-CR is the world’s only complete tactical visual communications solution. Conduct and stream a live multipoint video conference. Automatically record video calls, tactical data, live streams, or video from internal or remote cameras. Auto uploads and deletes recorded communications for remote command operations. Pull remote content live or On-Demand (VOD) – All Wireless, High Definition, Encrypted and Secure.

Key Features:

  • Secure user keycard automation
  • AES-256 encrypted VTC, streaming and file transfer
  • NATO 24V DC or 115V AC operation
  • Auto file download to USB
  • Auto encrypted FTP upload
  • VOD playback of remote content
  • Unicast or multicast streaming
  • Encode virtually any format
  • Support for portable electronics (i.e., smartphones, iPad)
  • High brightness, sunlight readable optically bonded display – 1080P LCD / LED display
  • Embedded HD low light camera produces high quality images for nighttime operations
  • Military spec case is man portable with EMI/RFI shielding
  • Ruggedized, waterproof, dustproof
  • SIP integration
  • Cisco call manager compatible
  • Incorporates JITC certified Cisco C-40 or C-60 codec
  • Optional satellite or terrestrial based Wi-Fi/ broadband terminal
  • Embedded microphone and speakers for high quality, reliable audio

Specifications

TAC-CR
HD CODEC SPECIFICATIONS

COMMUNICATION PROTOCOLS

  • H.323
  • IETF SIP

VIDEO
COMPRESSION STANDARD

  • H.261
  • H.263
  • H.263+
  • H.264

RESOLUTION

  • Up to 1080p

BIT RATE

  • H.323/SIP up to 6 Mbps point to point.

AUDIO
BANDWIDTH & CODING

  • G.711
  • G.722
  • G.722.1
  • MPEG4 AAC-LC

ECHO CANCELLATION

  • Stereo echo-canceling supported
  • Noise reduction included
  • Automatic gain control included

INTERFACE
VIDEO INPUT

  • 2 HDMI
  • 1 DVI-I
  • 1 analog component (Y/Pb/Pr)
  • 1 s-video/composite

VIDEO OUTPUT

  • HDMI (video, audio) RGB
  • DVI-I

AUDIO INPUT

  • Mic input x 2 (phantom powered)
  • Audio input (MIC/AUX) x 2 (RCA pin, stereo) x 1
  • 1 HDMI

AUDIO OUTPUT

  • HDMI (audio, video)
  • Line output (RCA pin, stereo)
  • REC output (RCA pin, stereo)

CAMERA CONTROL
FAR END CAMERA CONTROL

  • H.281

CONTROL/MAINTENANCE INTERFACE

  • RS-232C

NETWORK

  • 10BASE-T/100BASE-TX
  • ISDN unit interface

WIRELESS

  • 802.11 b/g
DISPLAY SPECIFICATIONS

DIMENSIONS

  • 25.5 x 24.5 x 14.5”
  • 70 lbs.

DISPLAY TYPE

  • 22 “ diagonal FHD active matrix LCD with LED BLU back light and optical bonding

MAXIMUM RESOLUTION

  • 1920 x 1080i (true HD)

HDMI INPUTS

  • 1 PC (RGB inputs)
  • 1 DVI inputs
  • 1 (DVI-D) signal inputs – PC
  • 1920 x 1080 max
CAMERA SPECIFICATIONS

LENS

  • 10x optical zoom, f=5.1 mm (wide) to 51.0 mm (tele), F1.8 to F2.1

DIGITAL ZOOM

  • 20x (200x with optical zoom)

TILT RANGE

  • 9° vert (4.5° up/ 4.5° down)

HORIZONTAL VIEWING/LENS ANGLE

  • 2.9° ~ 54.1°

WHITE BALANCE

  • Auto
  • Indoor
  • Outdoor
  • One-push
  • Manual

BACKLIGHT COMPENSATION

  • On/off

SIGNAL SYSTEM

  • HD: 1080/59.94i, 1080/50i, 720/59.94p, 720/50p
  • SD: NTSC (crop/squeeze), PAL (crop/squeeze)

FOCUS SYSTEM

  • Full auto (normal AF/interval AF/ zoom trigger AF), one-push trigger, manual, infinity, near-limit setting
OVERALL SPECIFICATIONS

DIMENSIONS

  • 25.5 x 24.5 x 14.5”
  • 70 lbs.
  • Pull handle and casters
RECORDING

ENCODING/STREAMING

  • H.264
  • RTSP
  • Unicast
  • Multicast

RECORDING

  • Multiple encoding rates
  • Multiple frame rates
  • Optional title and credit slides
  • Auto record video conferences

ARCHIVES

  • Access through web browsers (no client software needed)
  • No file size or duration limit (within constraints of hard drive)
  • Thumbnail images of files
  • Automatic download to USB
  • Automatic FTP upload w/ encryption

VIDEO-ON-DEMAND (VOD) PLAYER

  • Securely browse/play remote archives and streams

STORAGE

  • Total storage hours will vary based on content data rate and resolution estimated at:
  • 22 hours at 5 MB
  • 110 hours at 1 MB
  • 220 hours at 500 KB
  • 44-440 hours – AESOP
